Soft Starters

The ATI Range of Motor Soft Starters are used to soft start electric motors to reduce the strain put on the motor during the typical start-up phase of the motor. These soft starters reduce mechanical wear of the electric motor and offer significant energy saving capabilities. ATI Systems supply soft starters direct from stock.

Motortronics Agility Soft Starter

Short description on Motortronics Agility Soft Starter:

agility™ soft starters were developed to exceed the exacting demands of industrial automation motor control clients. agility™ soft starters delivers stable, structured start and stop ramps for smooth, efficient performance. One standard frame size covers all typical applications from 4.0 kW to 250 kW at 500 VAC, 3–350 HP at 600 VAC.

4.0 kW - 250 kW

Download Product Specifications

Get a Quote

Motortronics Synergy Soft Starter (Intelligent Motor Controller)

Short description on Motortronics Synergy Soft Starter (Intelligent Motor Controller):

synergy™ is redefining the rule book on motor controller size vs performance. It achieves a 54% decrease in controller size compared to competitor offerings.

3-phase SCR
Full motor overload
Standard Trip Class 10: 3 x 23 secs or 3.5 x 17 secs - 3 or 5 starts per hour (other Trip Classes are available)
208, 230, 400, 480 V
Allowing for varying frequency 45Hz-65Hz
Internally Bypassed - Size 1 to 3 Yes, Size 4 to 5 No
IP20 / NEMA 1, IP00
User-friendly, full colour touch screen
Full automatic set-up
Control voltages of 24VDC, 110/230VAC
iERS - intelligent Energy Recovery System as standard
In Delta / 6 wire connection
Modbus RTU as standard

7.5 kW - 630 kW

Download Product Specifications

Get a Quote

Motortronics PFE Soft Starter

Short description on Motortronics PFE Soft Starter:

The cost effective Soft Starter for small AC induction motors.

Internally Bypassed
Over Current Protected
45mm Wide (Size 1)
DIN Rail Mounted

2.2 kW - 22 kW

Download Product Specifications

Get a Quote

Motortronics HFE Soft Starter

Short description on Motortronics HFE Soft Starter:

The HFE is the ideal ‘retrofit’ energy optimizing solution for Soft Starting single phase motors.

The HFE has a rugged tin lid construction and can be mounted easily next to the machine or control panel. Installation of the unit is quick and simple due to the ‘two wires in, two wires out’ design. The unit is ‘fit and forget’ and there is no maintenance for the user.

1.1 kW and 4 kW

Download Product Specifications

Get a Quote

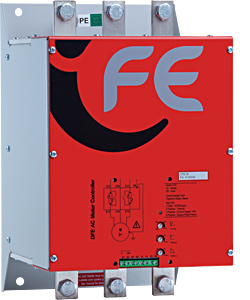

Motortronics DFE Soft Starter

Short description on Motortronics DFE Soft Starter:

Internally bypassed, non-optimizing Soft Starter which is perfect for panel builders and end users alike.

To the user it offers competitive pricing, soft stopping and the removal of high transient currents. To panel builders it is an ideal substitute for a Star/Delta starter because it fits into a similar footprint, thus simplifying installation.

45 kW - 200 kW

Download Product Specifications

Get a Quote

Visit Motortronics Soft Starters for more information
